NEWTON'S 3RD LAW

1H10.10 PUSH ME PULL ME CARTS
1H10.20 FAN CART

See Also 1N22.20 Water Rockets

 1H10.10 Push Me Pull Me Carts

Two students stand on carts and pull (rope) or push (pole) each other. Used to demonstrate Newton's Third Law.


Setup Requirements: Minimal



Equations: Forces are equal in size but opposite in direction.



Safety Issues: Students may fall off carts.

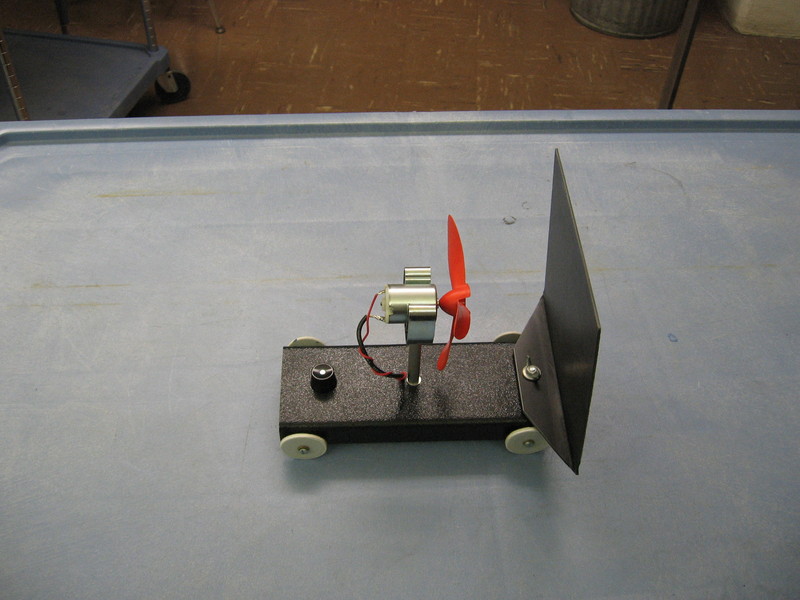

1H10.20 Fan Cart

Fan blows air one way. Cart goes the other way. Experiment with barrier blocking air stream with cart on air track. Fan provided may not be same as the one in the picture




Setup Requirements: Minimal. May need to replace batteries.



Equations: Forces are equal in size but opposite in direction. Momentum is conserved. Change in momentum of small particles hitting heavy barrier = 2 x initial momentum.



Safety Issues: Being cut by fan blade.
