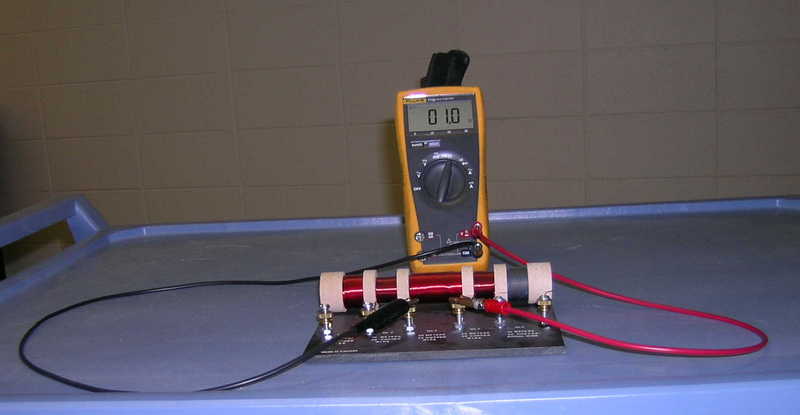

5D10.10 Resistance Coils

Coils can be used to show how resistance depends on length, diameter and material.



Setup Requirements: Minimal


Equations: Resistance proportional to length of resistor and proportional to 1/area


Safety Issues: None

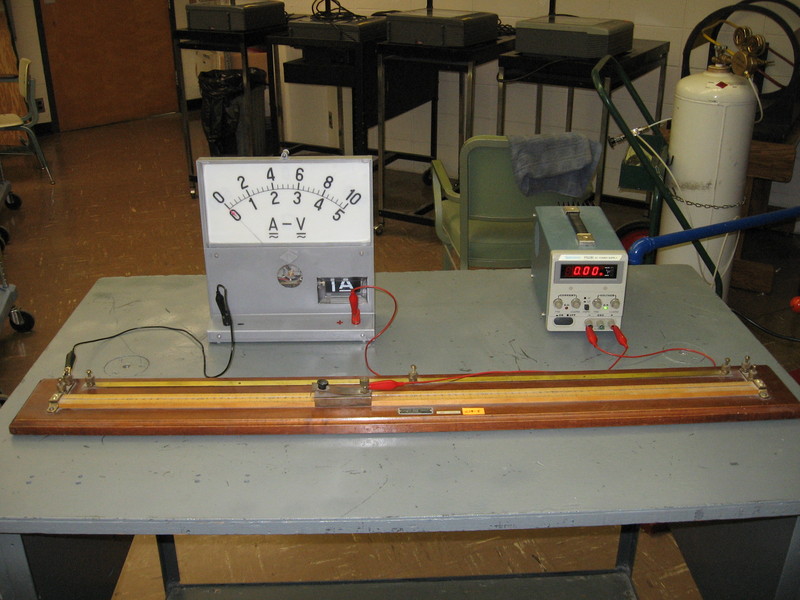

5D10.20 Slide Wire Resistor

Slide wire connected to battery and current meter shows how resistance varies with length of wire.



Setup Requirements: Assembled as needed. Set power supply to 0.5 v with open circuit. Use 1A scale on display meter.


Equations:  Resistance proportional to length of resistor. V = I(R + r) where R is wire resistance and r is meter resistance. To calculate R a voltmeter must be added to measure voltage between ends of wire segment.


Safety Issues: None

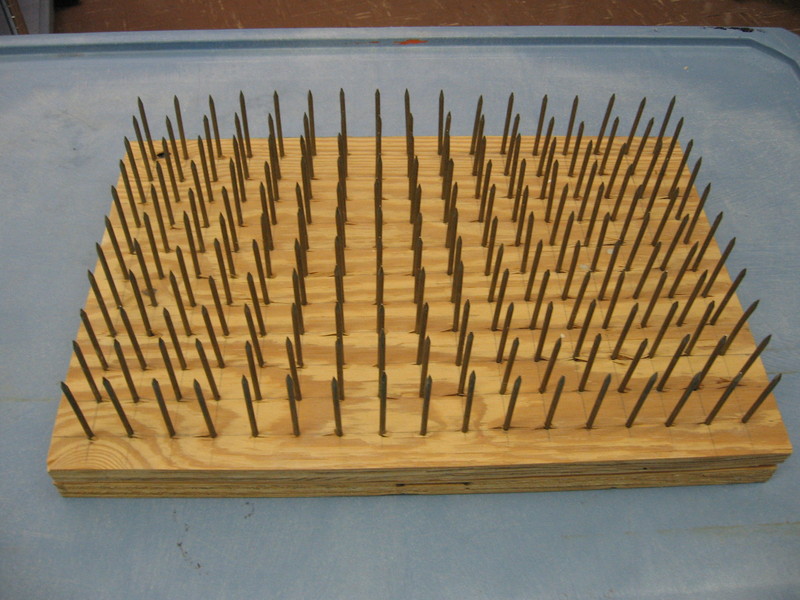

5D10.40 Resistance Model

The small bed of nails can be used as model of electrical resistance. Use small ball to represent electron. Nails represent atoms.


Setup Requirements: Off the Shelf


Equations: None


Safety Issues: Sharp Nails

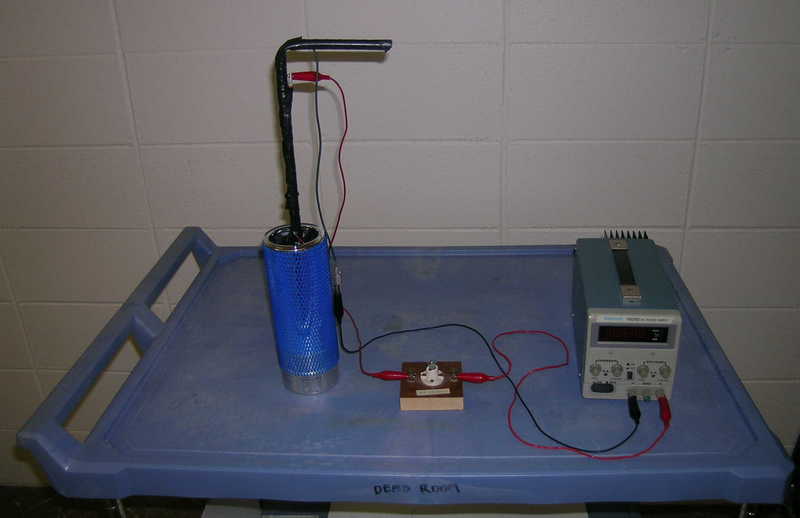

5D20.10 Resistance and Temperature

Coil resistance is so high that 12v bulb will not glow even with power supply set to 18v. Cool coil with liquid nitrogen until resistance drops low enough for current to increase until light bulb starts to glow.



Setup Requirements: Assembled as needed. At least 2 working day advance notice needed or bring your own LN. Bulb shown in picture has been replaced by 12v bulb. Add LN until container with coil is filled to the top. This may take longer than expected because the top of the LN is hidden by the vapor. Allow several minutes for coil to cool. While waiting verify circuit and check power supply is set to ~ 18v.


Equations: Resistance proportional to resistivity. Resistivity varies with temperature.


Safety Issues: Liquid Nitrogen

5D40.10 Jacob's Ladder

An arc rises between rabbit ear electrodes attached to a high voltage transformer. About 30,000 V/cm needed to get current flowing in air gap. Glowing area heats air, reducing density,so it rises.



Setup Requirements: Off the shelf. If it is slow to start rising, move your hand up and down over opening to vary air pressure in tube. The arc will ignite tissue paper. Have a piece of metal or wood handy to cover the hole once burning starts to avoid fire alarm going off.


Equations: None


Safety Issues: High Voltage, Flames. Do not touch electrodes when power on. Extremely high voltage may kill you. Keep students away. Turn off and unplug before opening to add paper.
